DL-6CRT-45 Tea Leaf Continuous Kneader Manual Rolling Machine for Voltage 380v Output

Condition : New

Applicable Industries : Food & Beverage Factory, Farms

Showroom Location : None

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : Hot Product 2019

Warranty of core components : 1 Year

Core Components : Engine, Bearing, Motor, Gear

Brand Name : DELI ASSISTANT

Place of Origin : China

Voltage : 380v

Power : 1.5kw

Dimension(L*W*H) : 910*1080*1280

Weight : 310 KG

Warranty : 1 Year

Application fields : tea leaves

Raw material : tea leaves

Output product name : tea leaves

capacity per batch : 15kg

barrel diameter : 450mm

barrel height : 280mm

tea disc diameter : 885mm

Maximum capacity per time : 15kg

Price : $1,568.00/sets 1-4 sets

Contact Now

DL-6CRT-45 Tea Leaf Continuous Kneader Manual Rolling Machine for Voltage 380v Output
DL-6CRT-45 Tea Leaf Continuous Kneader Manual Rolling Machine for Voltage 380v Output

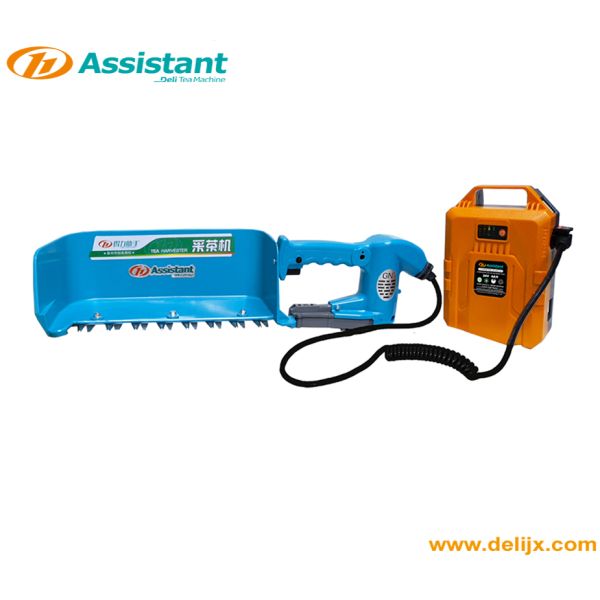

Tea Garden Management Equipments

DL-6CRT-45 Tea Leaf Continuous Kneader Manual Rolling Machine for Voltage 380v Output

Tea Withering Machine

DL-6CRT-45 Tea Leaf Continuous Kneader Manual Rolling Machine for Voltage 380v Output

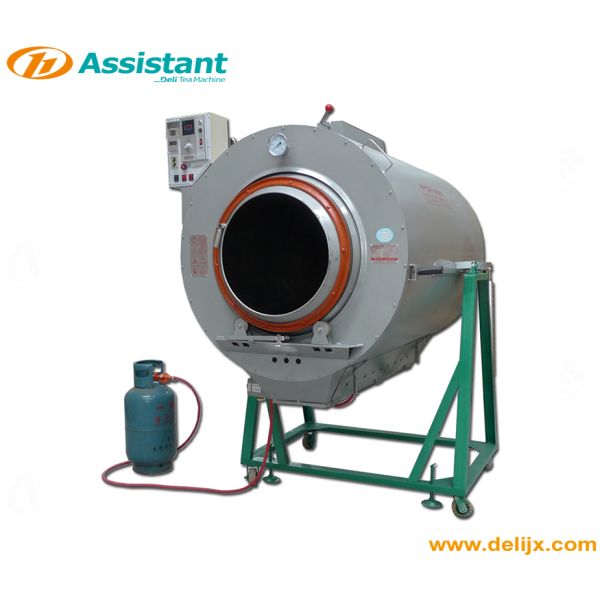

Tea leaf fixation machine

DL-6CRT-45 Tea Leaf Continuous Kneader Manual Rolling Machine for Voltage 380v Output

Tea Rolling Machine

DL-6CRT-45 Tea Leaf Continuous Kneader Manual Rolling Machine for Voltage 380v Output

Tea Fermentation Machine

DL-6CRT-45 Tea Leaf Continuous Kneader Manual Rolling Machine for Voltage 380v Output

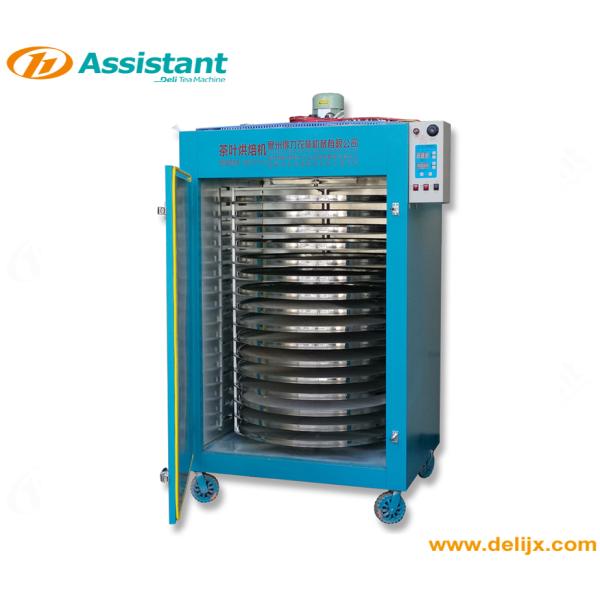

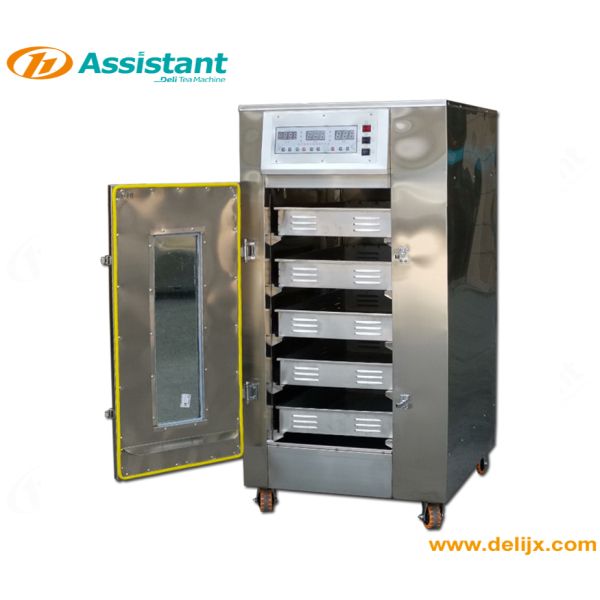

Tea Dryer Machine

DL-6CRT-45 Tea Leaf Continuous Kneader Manual Rolling Machine for Voltage 380v Output

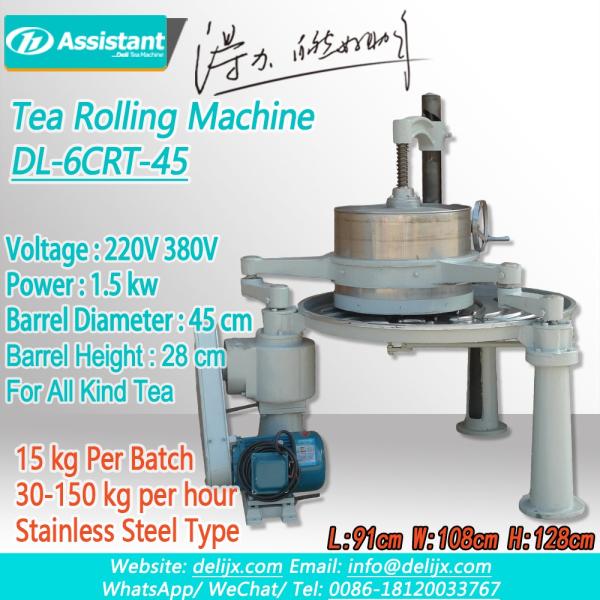

Model
DL-6CRT-45
Barrel diameter
450 mm
Dimension
910*1080*1280 mm
Barrel height
280 mm
Voltage
380V / 50Hz
Barrel speed
52 RPM
Power
1.5kw
Productivity
15 kg/h
Tea disc diameter
885 mm
Maximum capacity per time
15 kg/time

Tea rolling machine description:

For non-fermented tea such as green tea: For green tea, the main function of tea rolling machine is shaping.
Through the action of external force, tea rolling machine makes the leaves smash and light, the tea roll turns into a strip shape,and the volume is reduced, which is good for brewing.


For fermented tea such as black tea: Through the external force of the tea rolling machine, the tea cells are damaged, the tea juice overflows, accelerates the enzymatic oxidation of polyphenolic compounds, facilitates fermentation, lays a foundation for the formation of the unique taste of the fermented tea.
Model
Barrel Diameter
Barrel Height
Capacity
DL-6CRT-25
25 cm
18 cm
3 kg/batch
DL-6CRT-30
30 cm
21 cm
5 kg/batch
DL-6CRT-35
35 cm
26 cm
8 kg/batch
DL-6CRT-40
40 cm
25 cm
11 kg/batch
DL-6CRT-45
45 cm
28 cm
15 kg/batch
DL-6CRT-50
50 cm
28 cm
20 kg/batch
DL-6CRT-55
55 cm
40 cm
35 kg/batch
DL-6CRT-65
65 cm
48 cm
60 kg/batch
DL-6CRT-75
75 cm
58 cm
100 kg/batch
DL-6CRT-85
85 cm
70 cm
240 kg/batch
DL-6CRT-90
90 cm
100 cm
300 kg/batch

Tea rolling machine application:

Tea rolling machine can use for most of tea such as black tea, green tea, and oolong tea.
DL-6CRT-45 Tea Leaf Continuous Kneader Manual Rolling Machine for Voltage 380v Output
①
Transverse arm
⑧
Support column
②
Barrel cover
⑨
Rolling disc
③
Stainless steel Drum
⑩
Handwheel
④
Crank
⑪
Support frame
⑤
Transmission case
⑫
Tea discharge handle
⑥
Transmission belt
⑬
Tea outlet
⑦
Drive motor
⑭
Support leg
DL-6CRT-45 Tea Leaf Continuous Kneader Manual Rolling Machine for Voltage 380v Output
Rolling barrel and rolling plate
Tea rolling barrel made of stainless steel, rolling plate and rolling strip made of aluminum, It will not rust and produce no harmful substances to human body.
Professional design of kneading plate tilt angle and kneading strip radian, the speed of forming tea is 30% faster.
The side is higher than plate, prevent tea leaves ralling from the tea rolling machine.
Can custom all stainless steel or full copper type, if you need these type tea rolling machine, please tell us.
DL-6CRT-45 Tea Leaf Continuous Kneader Manual Rolling Machine for Voltage 380v Output

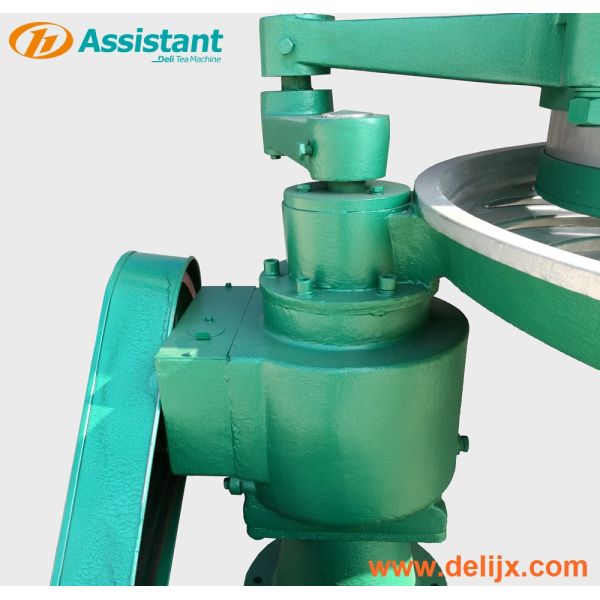

Gear box

Stable gearbox, crank and support frame , ensure smooth and safe operation of tea kneading machines
DL-6CRT-45 Tea Leaf Continuous Kneader Manual Rolling Machine for Voltage 380v Output

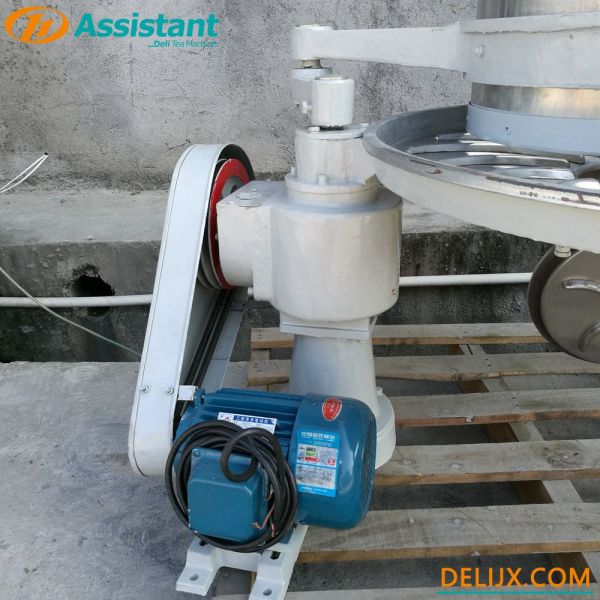

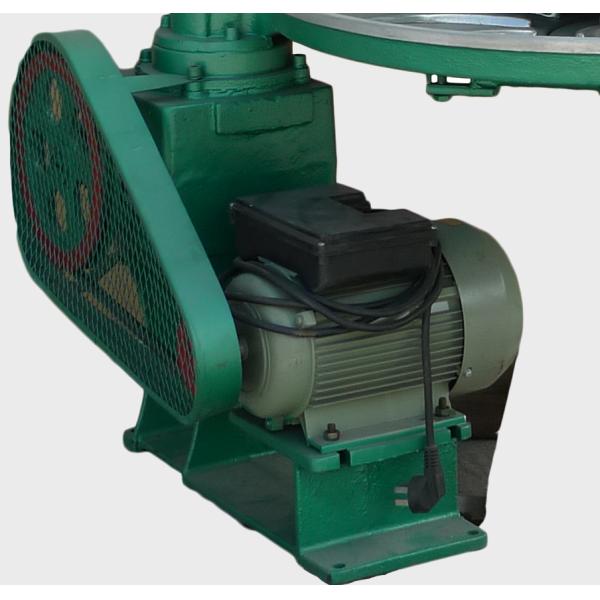

Copper core motor

Powerful copper core drive motor, provide a steady source of power for tea kneading machines.
DL-6CRT-45 Tea Leaf Continuous Kneader Manual Rolling Machine for Voltage 380v Output

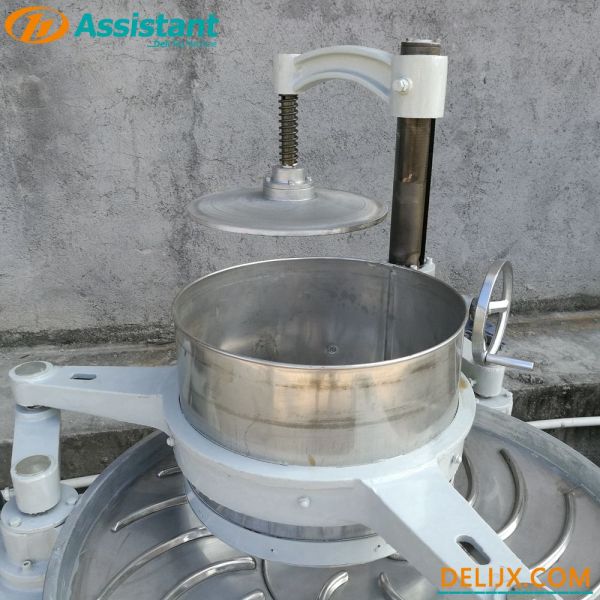

Handwheel and barrel lid

Convenient handwheel, the barrel lid is pressurized by springs, and can be rotated, quality of tea more higher.
DL-6CRT-45 Tea Leaf Continuous Kneader Manual Rolling Machine for Voltage 380v Output

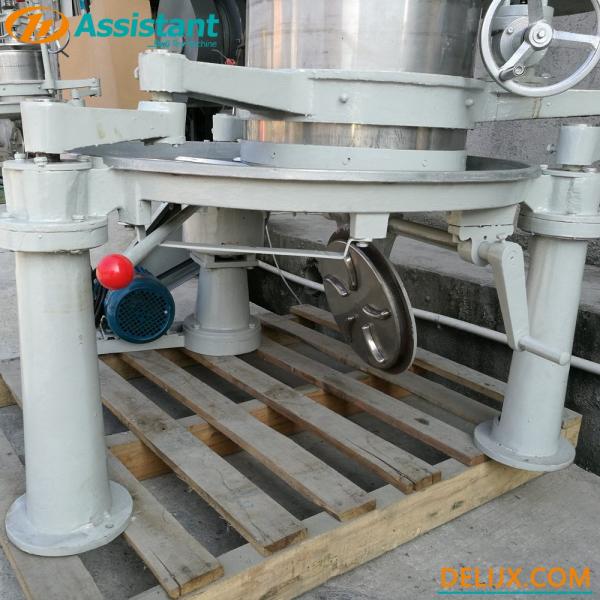

Rolling plate and tea leaf outlet
Professional design of kneading plate tilt angle and kneading strip radian, the speed of forming tea and pour out tea leaf is 30% faster.
DL-6CRT-45 Tea Leaf Continuous Kneader Manual Rolling Machine for Voltage 380v Output
Tea rolling machine inventory
We have 30 stocks for each model of tea rolling machines, delivery is fast, no need to wait.
DL-6CRT-45 Tea Leaf Continuous Kneader Manual Rolling Machine for Voltage 380v Output
DL-6CRT-45 Tea Leaf Continuous Kneader Manual Rolling Machine for Voltage 380v Output
DL-6CRT-45 Tea Leaf Continuous Kneader Manual Rolling Machine for Voltage 380v Output
DL-6CRT-45 Tea Leaf Continuous Kneader Manual Rolling Machine for Voltage 380v Output
DL-6CRT-45 Tea Leaf Continuous Kneader Manual Rolling Machine for Voltage 380v Output
DL-6CRT-45 Tea Leaf Continuous Kneader Manual Rolling Machine for Voltage 380v Output
If you are interested in tea rooling machine, click here to send us enquiries.
DL-6CRT-45 Tea Leaf Continuous Kneader Manual Rolling Machine for Voltage 380v Output
Obtain ISO9001 quality system certification
More than 30 Chinese honorary certificates
More than 20 Chinese national patent certificates
More than 50 promotion certificates of China Agriculture Ministry
DL-6CRT-45 Tea Leaf Continuous Kneader Manual Rolling Machine for Voltage 380v Output
DL-6CRT-45 Tea Leaf Continuous Kneader Manual Rolling Machine for Voltage 380v Output
DL-6CRT-45 Tea Leaf Continuous Kneader Manual Rolling Machine for Voltage 380v Output
DL-6CRT-45 Tea Leaf Continuous Kneader Manual Rolling Machine for Voltage 380v Output
Customers visit our factories
DL-6CRT-45 Tea Leaf Continuous Kneader Manual Rolling Machine for Voltage 380v Output
DL-6CRT-45 Tea Leaf Continuous Kneader Manual Rolling Machine for Voltage 380v Output
DL-6CRT-45 Tea Leaf Continuous Kneader Manual Rolling Machine for Voltage 380v Output
Part of the our workshop photos
